ARGO MPC – Multi-pass cell post-compression for Yb-lasers

Compression factor: up to 10x (single stage)
Conversion efficiency: up to 90% (compressed)
Shortest pulse duration possible: < 30 fs
Pump pulse energies: up to 1.5 mJ
Repetition rate: up to 1 MHz

Introduction

ARGO MPC: High Efficiency Multi-Pass Cell Post-Compression for Yb Lasers

ARGO MPC is a non-linear pulse compression system with available pump laser integration. It achieves compression factors up to 10x, and pulse durations down to 30 fs with market-leading throughput. Wavelength conversion stages enable 515 nm and 343 nm outputs at short pulse durations. Our new Class 5 Bridge, an IoT-enabled modular control system, connects multiple ARGO units to build advanced pump-probe setups.

-Client Testimonials

“I have 22 different ultrafast pump-probe modes configured. With this system, I have the flexibility to study ultrafast light matter interactions in various materials for the optics industry.”

— Anne Harth, Professor of Optical Engineering and Applied Photonics at the Faculty of Optics, Aalen University of Applied Sciences.

Features

High pulse compression factor

Up to 10x, down to < 30 fs

High power throughput

Pump power up to 100W/1.5 mJ.

Pump laser integration available

Yb-laser can be integrated into the same housing for optimal compactness and stability.

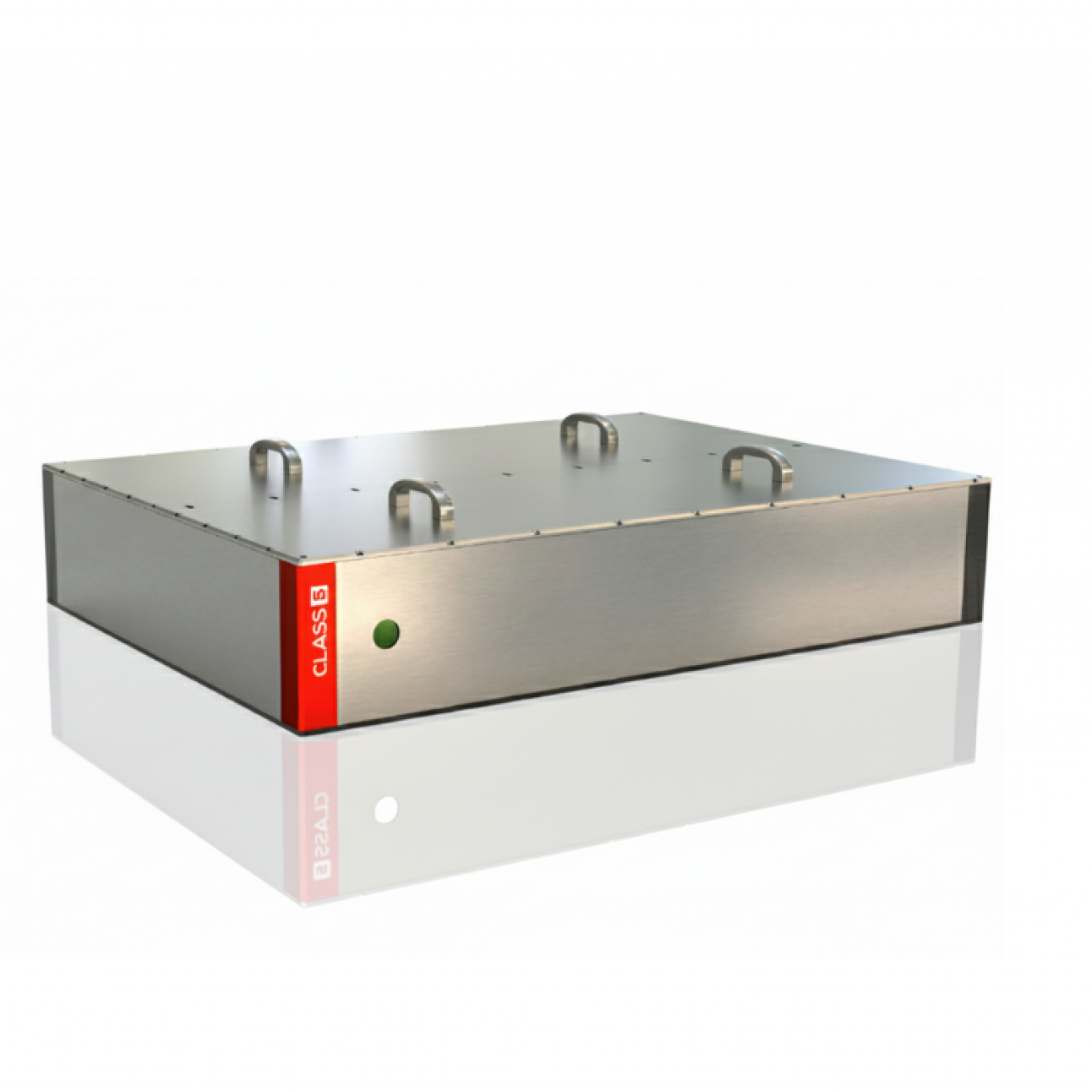

Class 5 Bridge: Build your pump-probe suite

All ARGO units can be connected to a multi-color pump-probe setup with Class 5 Bridge modular control system.

Specs

	ARGO 1030	ARGO 1030 Pro
Wavelength (central)	1030 nm
Compression factor	10 (single stage)
Shortest supported pulse duration	< 30 fs	< 50 fs
Conv. eff. (at peak)	85 % (compressed)	90 % (compressed)
Pump energy	20 – 100 µJ	200 – 1500 µJ
Required gas supply	not required	Krypton / Argon
Repetition rate	up to 1 MHz
Pump laser power	10 – 100W (up to 300W on request)
SHG / conv.* (peak)	515 nm / 30%
THG / conv.* (peak)	343 nm / 5%

*conversion efficiencies of compressed 1030 nm MPC output

Performance

ARGO is compatible with a wide range of commercially available Yb-lasers, including but not limited to:

Monaco – Coherent
A8000 – Amphos
Carbide – Light Conversion

Please contact us to confirm compatibility with your specific laser source.

Is a pump laser included with the ARGO MPC?

The ARGO MPC line is specifically designed to operate with a wide range of Yb-lasers. Our systems can be integrated with existing Yb-lasers or, upon request, delivered as a complete system that includes a new pump laser.

What are the shortest pulse durations supported by ARGO?

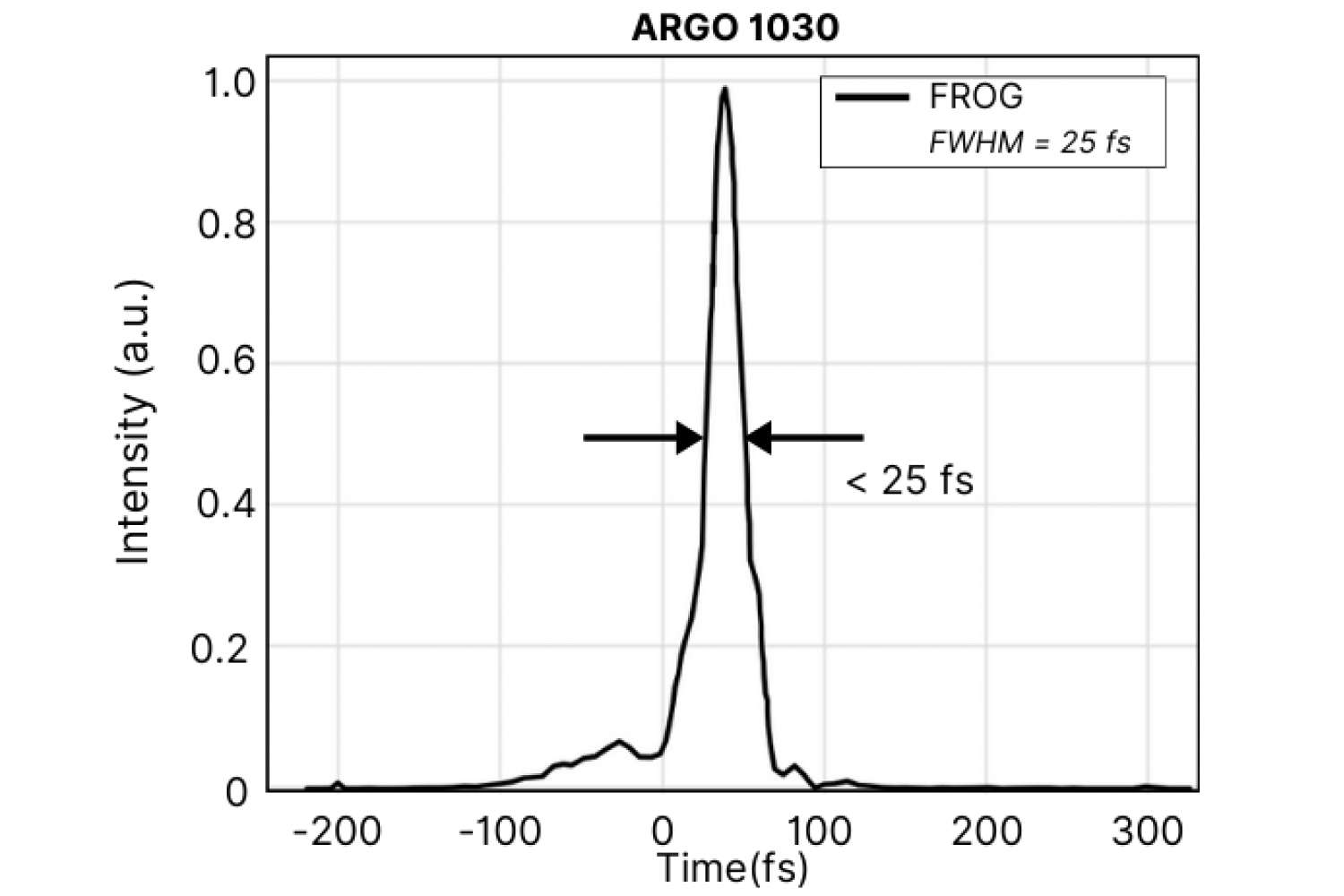

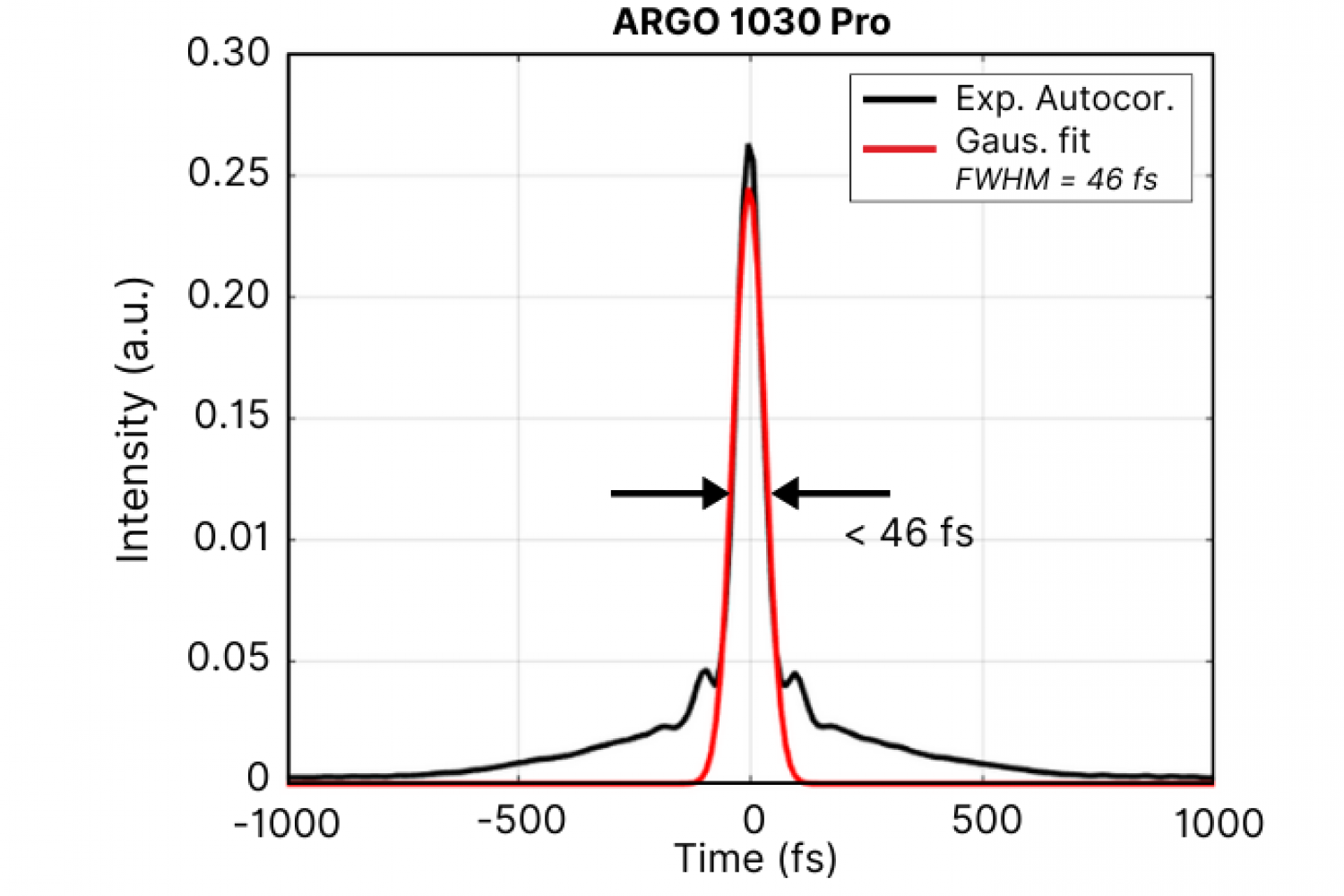

For ARGO 1030, pulses are compressed to durations below 30 fs. For ARGO 1030 Pro, pulse durations are below 50 fs.

Which wavelength options are available for the ARGO 1030 MPC?

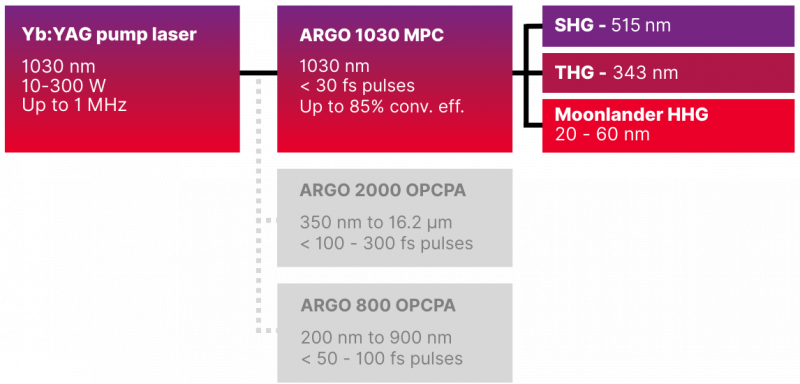

The ARGO 1030 series offers a compressed output at 1030 nm. This output can be further converted to 515 nm (SHG) and 343 nm (THG) using our high-efficiency nonlinear frequency conversion stages.

If wavelength tunability is required, consider integrating also our ARGO OPCPA series, which can deliver wavelengths ranging from 200 nm to 16.2 µm.
