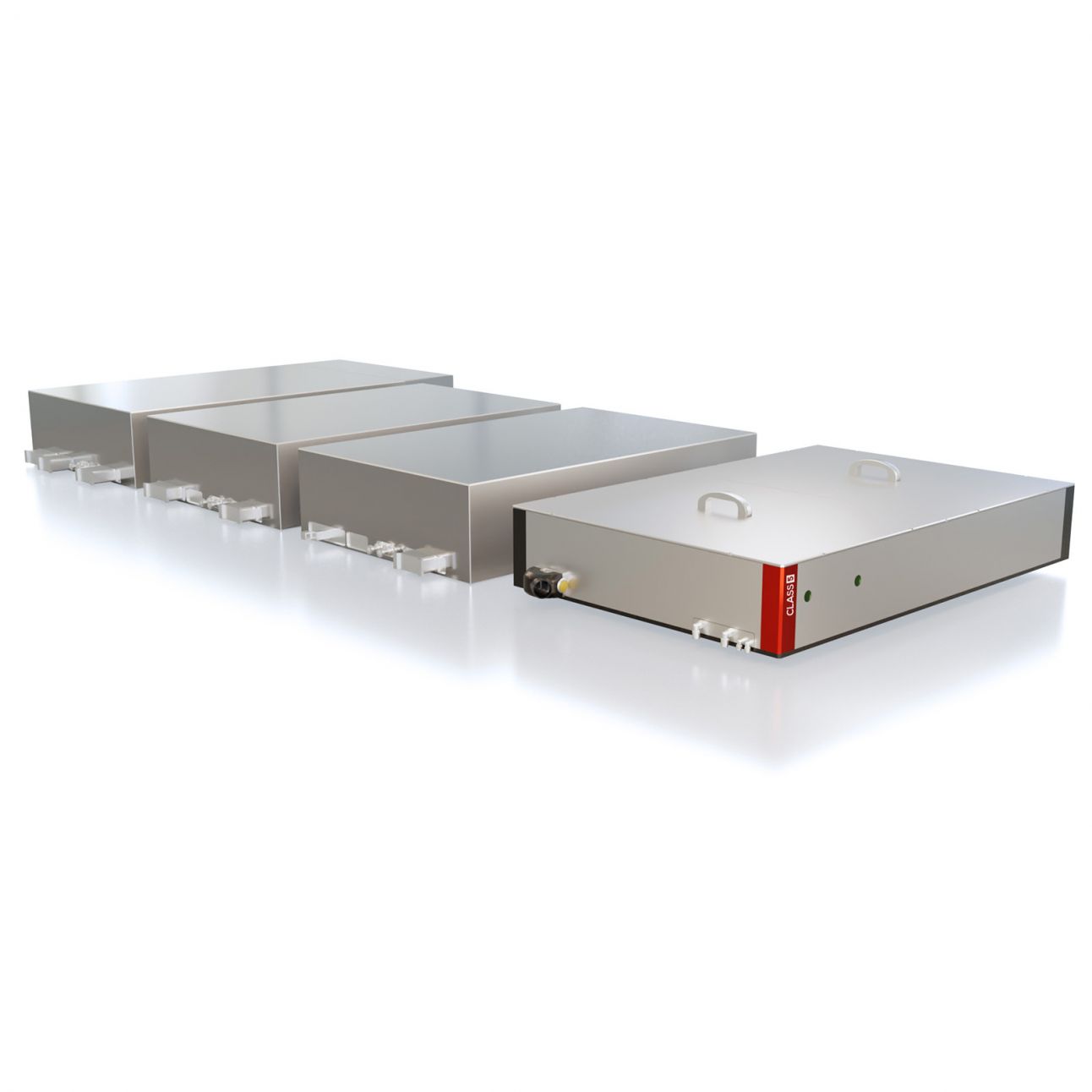

Supernova

Our flagship OPCPAs for highest pulse energies

output power up to 100 W
output energy up to 20 mJ
pulse duration down to 9 fs
few-cycle pulses from 800 nm to 3 µm
CEP stability

Introduction

Award-winning extreme power OPCPA systems

The Supernova OPCPA is our award-winning flagship product providing extreme power at extreme wavelengths.

The Supernova OPCPA offers extremely short pulse durations and average powers, high temporal contrast, different wavelength versions and CEP stability. The product is available as a high repetition rate version and also as a high energy version with multi millijoule pulse energies pumped by kW-class Yb:YAG Innoslab or thin-disk amplifiers.

Features

Extreme average power

up to 100 W average power at high repetition rates

Passive CEP stability

Intrinsic carrier-envelope-stability for highest-precision attosecond science

Wavelength from UV to mid-IR

Systems available from 200 – 10.000 nm

High energy version available

based on Yb thin-disk amplifier technology as pump laser

Specs

	SN-800	SN-1550	SN-2000	SN-3000
Central wavelength	800 nm	1550 nm	2000 nm	3000 nm
Pulse duration FWHM	< 15 fs	< 40 fs	< 40 fs	< 80 fs
Average power	20 W / 100 W	30 W / 100 W	20 W / 100 W	12 W / 60 W
Pulse energy compressed	20 mJ at 1 kHz 1 mJ at 100 kHz 1 mJ at 20 kHz	30 mJ at 1 kHz 1.5 mJ at 20 kHz 1.5 mJ at 100 kHz	20 mJ at 1 kHz 1 mJ at 100 kHz 1 mJ at 20 kHz	12 mJ at 1 kHz 0.6 mJ at 100 kHz 0.6 mJ at 20 kHz
Repetition rate	up to 100 kHz		up to 100 kHz	up to 100 kHz
CEP stability	on request		on request	on request
Pump laser incl.	200 W / 1000 W		200 W / 1000 W	200 W / 1000 W

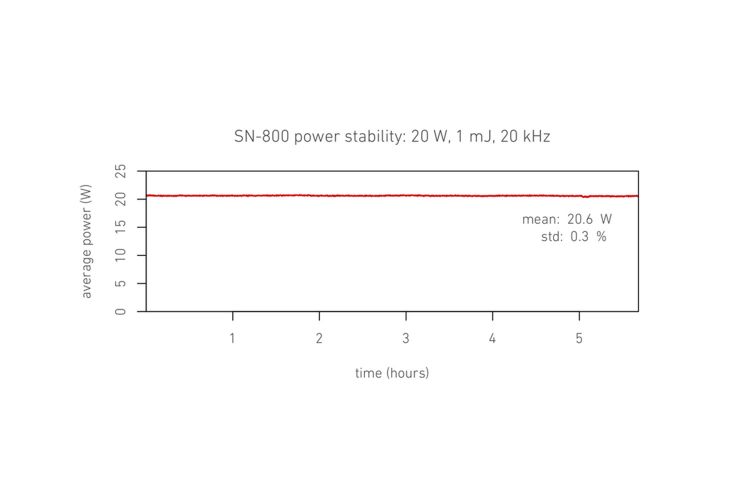

Performance

Applications

Attosecond science
Material science & photo-electron spectroscopy
Large research facilities
Free-electron or synchrotron pump-probe lasers

Downloads

FAQ

Do you include the pump laser?

Yes, the Yb-based pump laser is included in our package. We collaborate with the main providers of Yb-based pump laser to pump our OPCPAs.

Do you offer additional wavelength options?

Yes, we can customize the Supernova to meet your requirements. Please contact our sales team for further information.

Publications

June 12, 2019

Matthew K. R. Windeler et al, “100 W high-repetition-rate near-infrared optical parametric chirped pulse amplifier”, Opt. Lett. 44, 4287-4290 (2019)

https://opg.optica.org/ol/abstract.cfm?uri=ol-44-17-4287
January 10, 2019

Katalin Mecseki et al, “High average power 88 W OPCPA system for high-repetition-rate experiments at the LCLS x-ray free-electron laser”, Opt. Lett. 44, 1257-1260 (2019)

https://opg.optica.org/ol/abstract.cfm?uri=ol-44-5-1257
